Profile U
Cold-formed galvanized steel structural profiles of U-section

Application:
Light steel structures for buildings, walls, floors and roofs.

Composition:
Structural steel S280GD, S320GD according to EN 10346
Metal cladding Z200-Z275 or ZM310 according to EN 10346

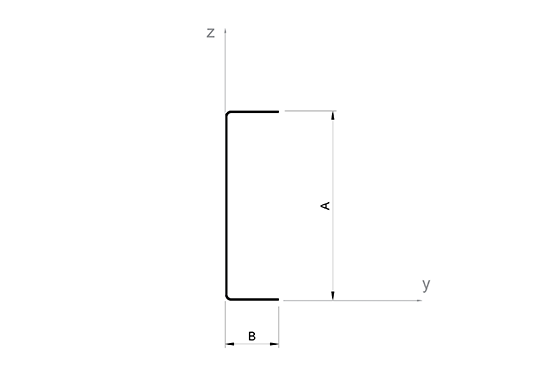

Dimensions:

Profile Thickness
mm		 Core
A
mm

Flange
B
mm
U 93 1,5 93 43
U 153 1,5 153 43
U 204 2,0 204 43
U 255 2,5 255 43


Standard length: 6,000 mm, other dimensions on request.

Regulations:

According to EN 1090
