Application:

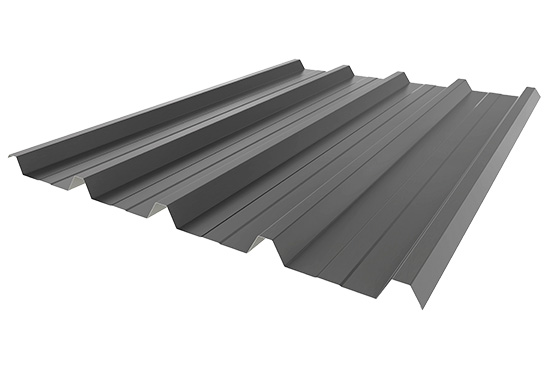

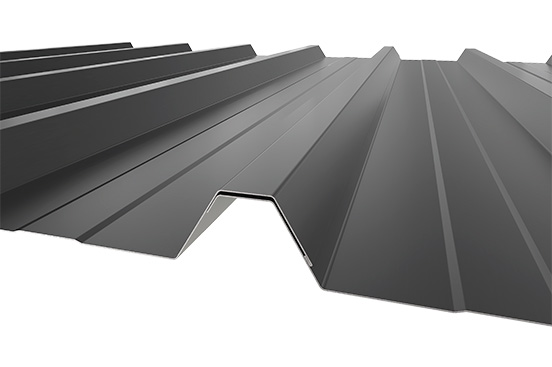

Cladding for building roofs

Composition:
Structural steel alloy, rolled S220GD to S320GD, according to EN 10025
Aluminium alloy, rolled 3105 H24, according to EN 485 and EN 573

Metallic Coating
Galvanising Z100 to Z275 according to EN 10346
Other coatings, on request: AZ70 to AZ150; ZM310

Organic Coating
Coating PE 25 µm, according to EN 10169
Other coatings available upon request: PVDF 35 µm; HDX 55 µm; HPS 200 µm

Dimensions:
Effective Width: 1000 mm
Total Width: 1056 mm
Thickness: 0.4 to 0.8 mm
Length: 2000 to 14000 mm

Reaction to Fire:
Class A1

Regulation:

In compliance with EN 14782
